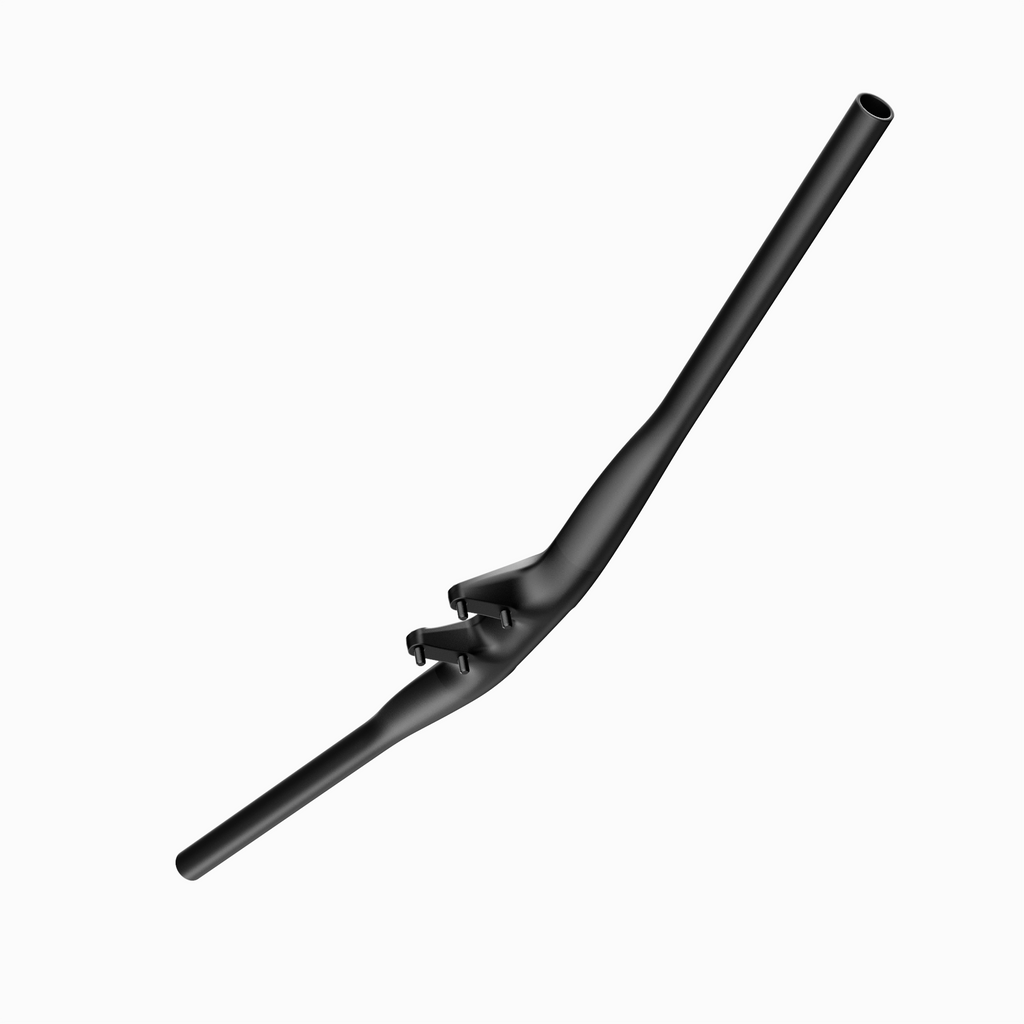

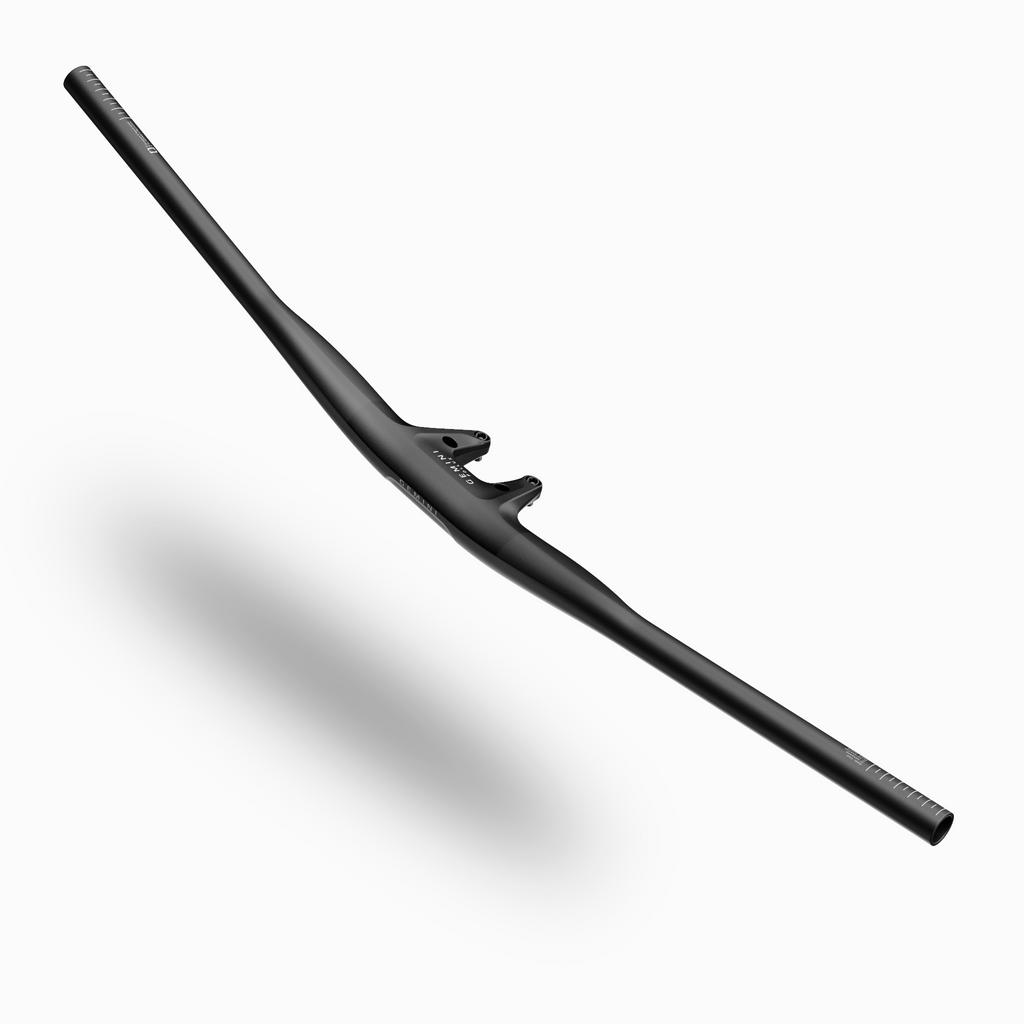

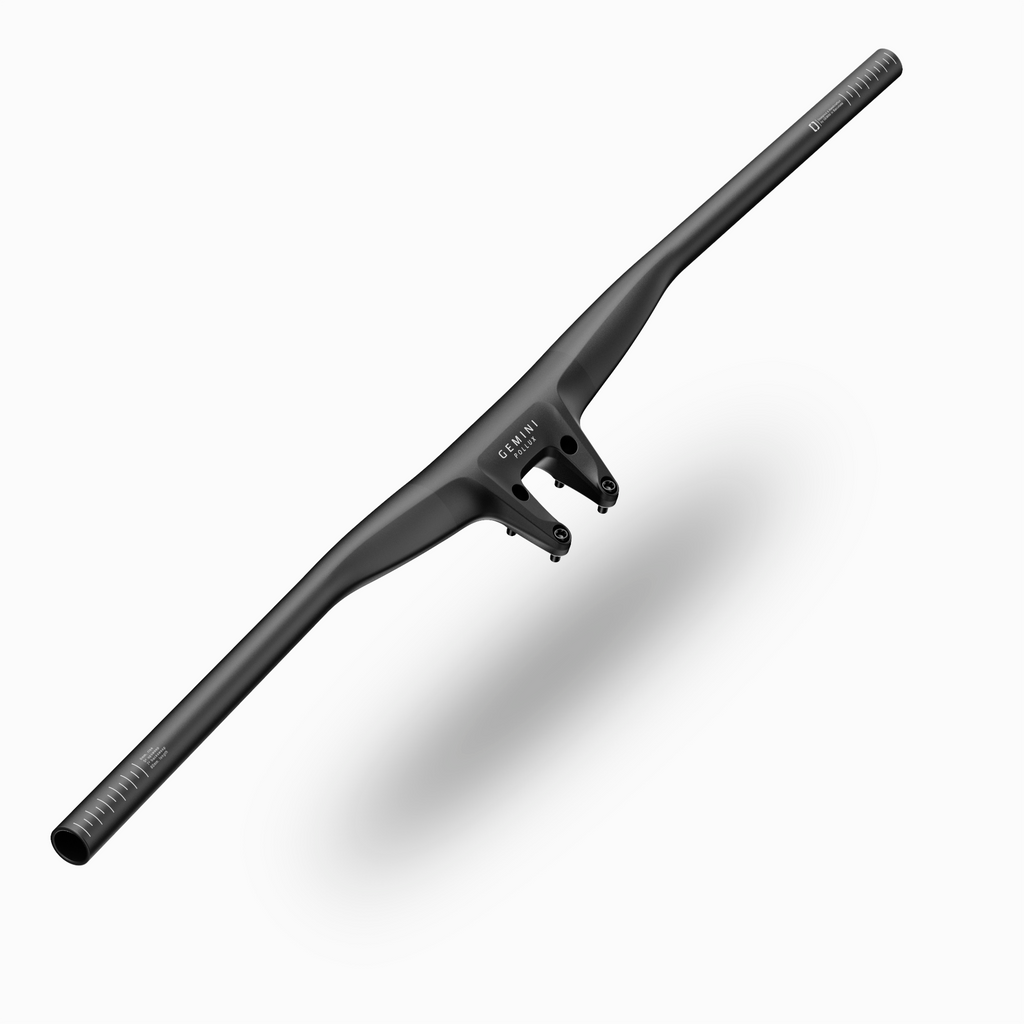

Manillar Gemini POLLUX de carbono para descenso, con diseño robusto y acabado de alta gama, principal

POLLUX - Integrated Carbon MTB Handlebar for DH 810 mm (Direct Mount)

€650,00 EUR

Select the power length of your Gemini POLLUX:

We manufacture our Gemini Pollux handlebars in a UD Matte finish by default. If you prefer a different finish, you can choose it here and we will manufacture it for you.

* We only produce a limited quantity each week.
If you order today, it will be ready in 4 weeks.

FREE EU Shipping

15 days for exchanges and returns

3-year warranty

TOP Customer Service, Contact Us!

Por defecto, nuestros manillares vienen con acabado UD mate, que ofrece una estética sobria y minimalista con superficie negra lisa. Para quienes buscan una apariencia más personalizada o llamativa, ofrecemos acabados opcionales con coste adicional:

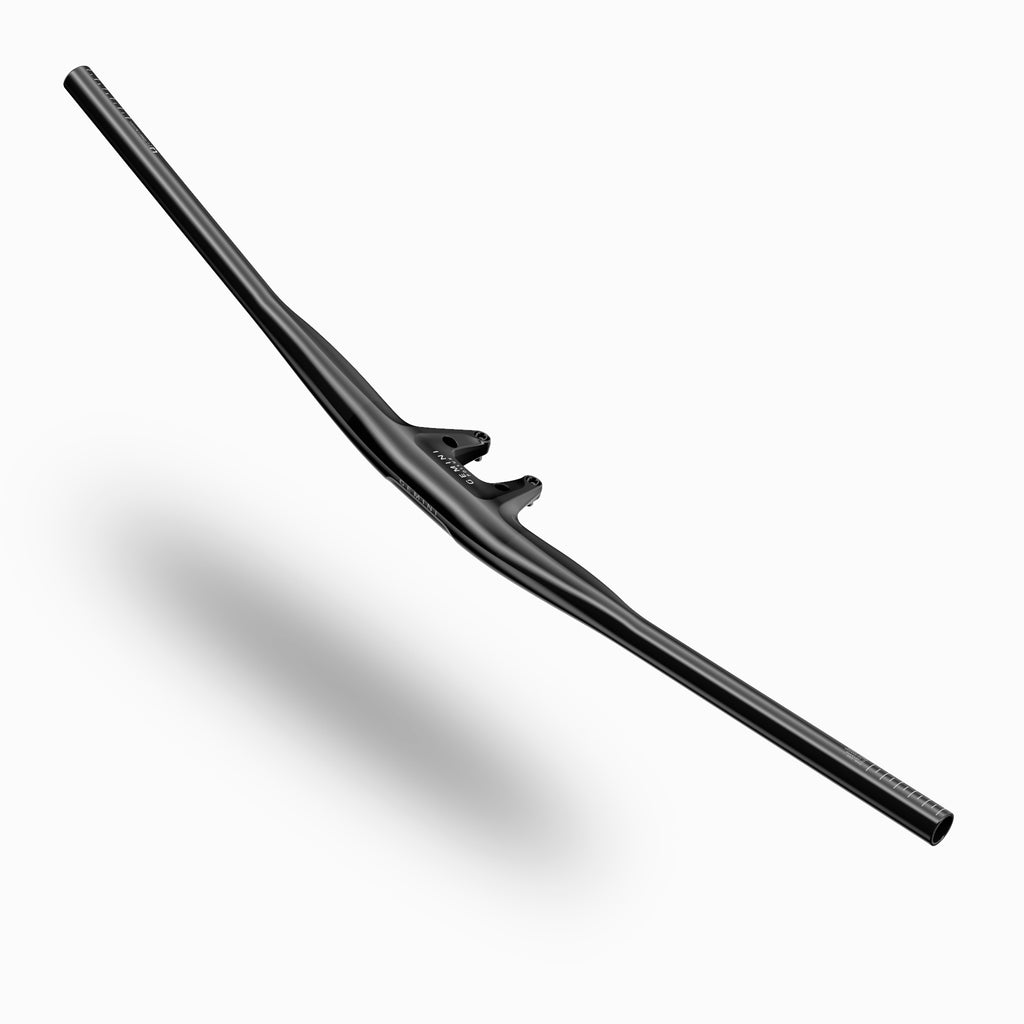

UD brillo
Acabado negro brillante sobre fibra UD.
Ideal para quienes prefieren una estética más pulida y elegante.
Mantiene la superficie lisa, sin patrón visible.

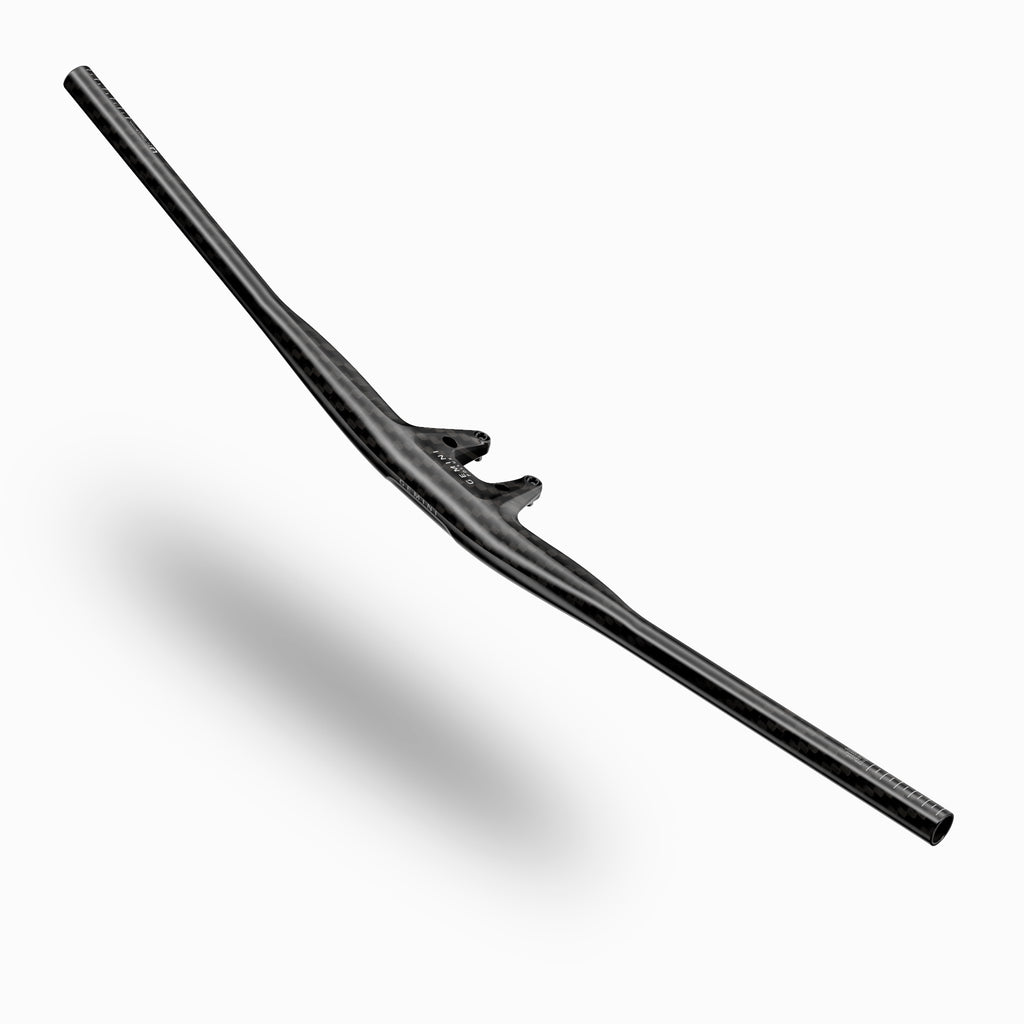

12K brillo
Acabado brillante sobre tejido de carbono 12K.
El patrón entrelazado de la fibra queda visible, aportando un look técnico y distintivo.
Recomendado para quienes quieren destacar el carácter carbono de la pieza.
12K mate
Acabado mate sobre fibra 12K.
Combina el patrón visible con una estética más discreta y profesional.
Perfecto para quienes buscan un equilibrio entre sofisticación y rendimiento.

POLLUX has been developed with one purpose: to get you down faster.
Its one-piece carbon body is engineered for maximum strength, precision, and control, thanks to its special design for mounting directly on your double-crown fork. The geometry has been optimized to distribute weight evenly and achieve instant responsiveness , taking the bike exactly where you want it in a matter of thousandths of a second with an unparalleled aesthetic.

It incorporates the GMN section , developed to maximize rigidity in the area that provides handlebar control , while its vertical flex is designed to absorb vibrations, allowing you to make the longest and most broken descents at maximum speed without your hands and upper body suffering.

Each handlebar is handcrafted in our Barcelona workshop using proprietary technology and high-performance carbon fiber . The result is a unique, exclusive, and limited-production piece.

Weight: from 230 gr., includes titanium screws.

Optimized geometry for Downhill :
- Width: 810 mm (other measurements upon request)
- Rise: 20 mm
- Upsweep: 5°, Backsweep: 7°
Finish:
- Standard: UD Mate.
- Customized, on request: UD or 12K fiber finish. Gloss or Matte coating.
- Custom Lab: Take your handlebar paint to the next level and make it unique.
Includes:
- M6 titanium screws for mounting on plate.

While the products we create are worthy of a display case, they're meant to be enjoyed by you as you ride and push your limits, and falls are part of the game.
In this situation, if you damage a Gemini component, don't worry and send us an email to info@ridegemini.com with:

details and photos of your damaged product
your original receipt
any other details that may be useful

and we'll offer you a discount on a replacement component

Country:

POLLUX

Designed to take your downhill bike control to the next level, Pollux is the result of many hours of design and engineering to create a maximum strength and minimum weight piece specifically for downhill.

A COCKTAIL OF DESIGN, ENGINEERING AND THE FINEST MATERIALS.

Pollux has been designed from the ground up to be manufactured in carbon and to get the most out of this material, aided by the most advanced calculation software and applying a simple and functional design, which is why it is unlike anything you've seen before.

STARTING AT ONLY 255g. THANKS TO THE UNIBODY DESIGN. MORE STRENGTH WITH LESS MATERIAL.

Engineering work has focused on simplifying and improving stress distribution, reducing the areas where stress peaks accumulate and allowing for increased strength with less material.

NO ASSEMBLY STRESS

By eliminating the connection between the stem and handlebars, the tensions generated by the preloads generated during assembly are eliminated, preventing the handlebar from slipping. The areas subject to compression, which deform the part and cause delamination of the fiber layers, reducing resistance, are also eliminated.

VOLTAGE DISTRIBUTION

The continuity of the material between the stem and the handlebar facilitates the distribution of stresses over a larger area, so that they flow along the handlebar, eliminating areas with high accumulations and thus increasing the final strength.

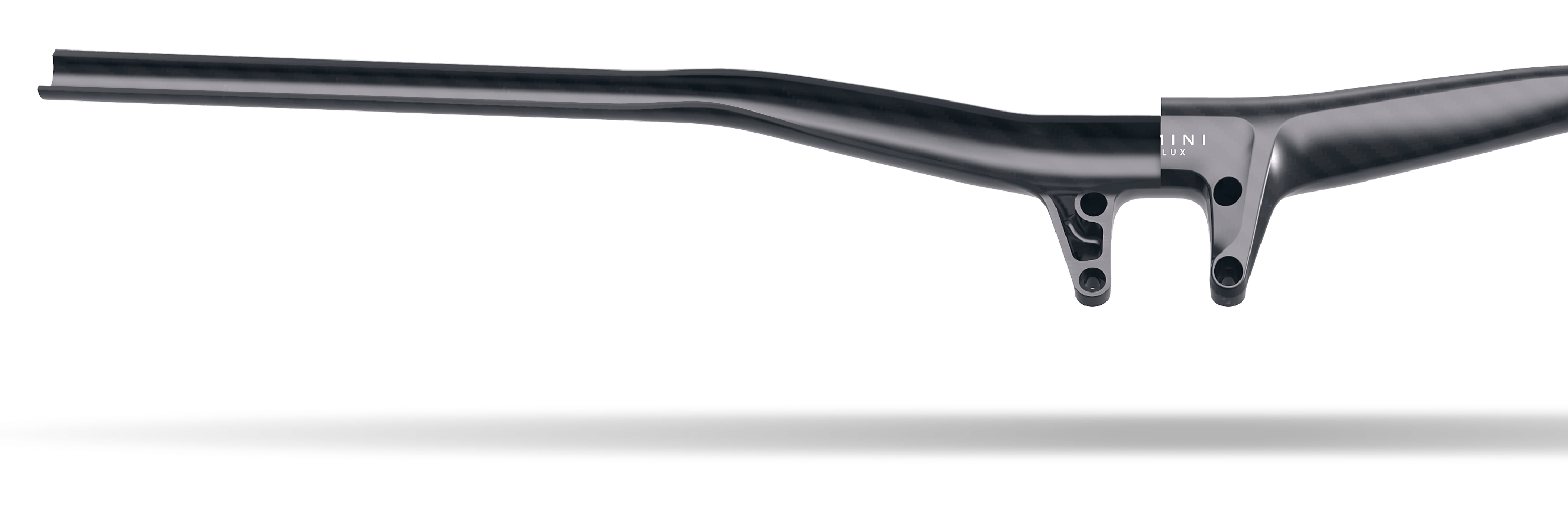

GMN SECTION

Circular sections behave the same in all directions, which is why we developed the GMN section with two basic purposes: to reduce hand fatigue due to vibrations and forces, and to increase reactivity and control when turning.

VERTICAL ABSORPTION

By reducing the vertical section we achieve greater absorption of vertical impacts and vibrations, this translates into less fatigue in the hands and being able to maintain a high rate of descent, aluminum bar

SPIN REACTIONS

By increasing the horizontal section, we manage to increase the rigidity of the handlebar against the forces exerted by the pilot to turn, this translates into more direct and reactive steering control. Carbon bar

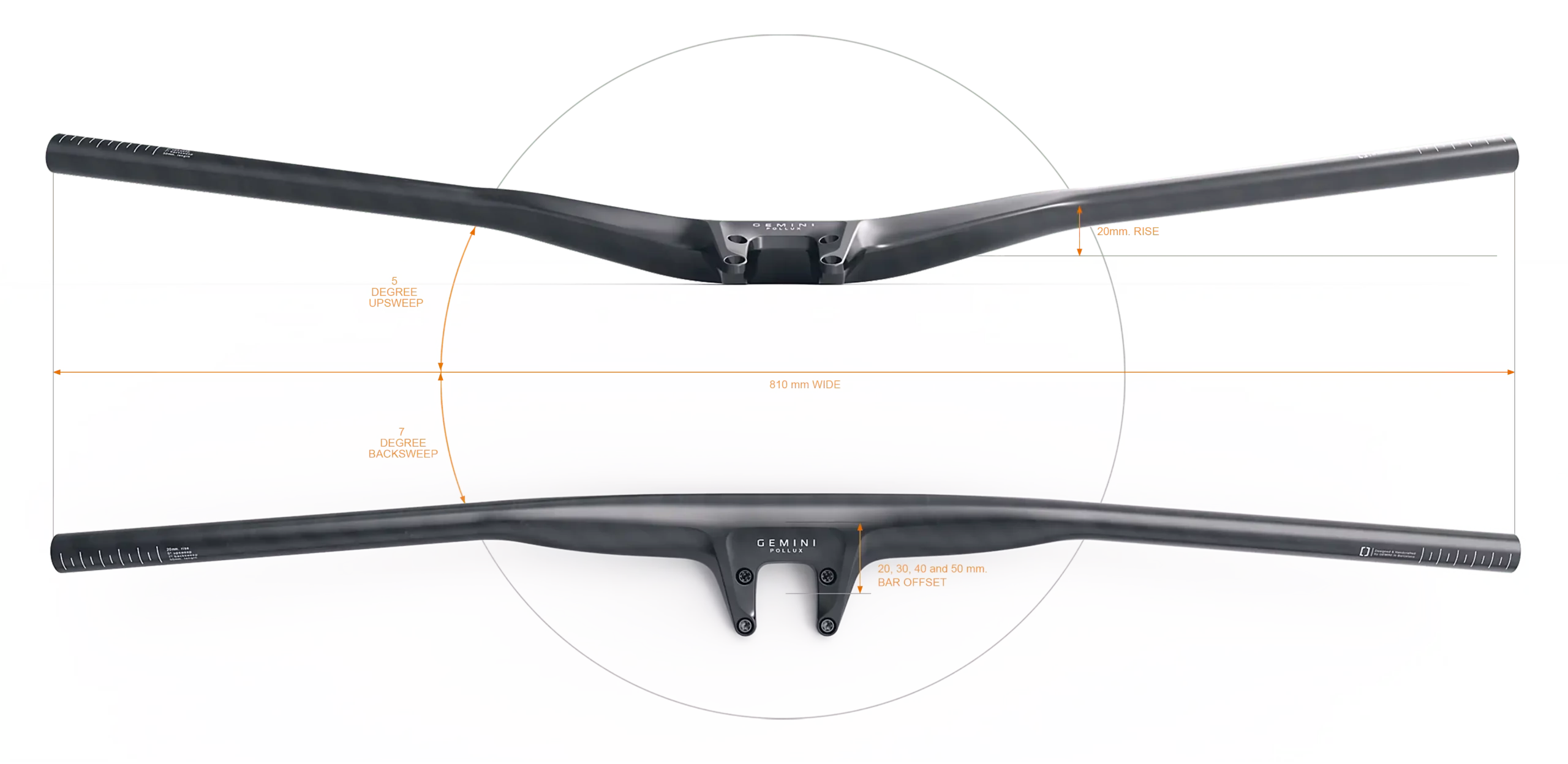

OPTIMIZED GEOMETRY FOR DOWNHILL, IN 20, 30, 40 AND 50 MM LENGTHS.

POLLUX has a geometry designed to give you maximum control and comfort, supporting your body in a perfect natural position and reducing fatigue on the longest and toughest descents.

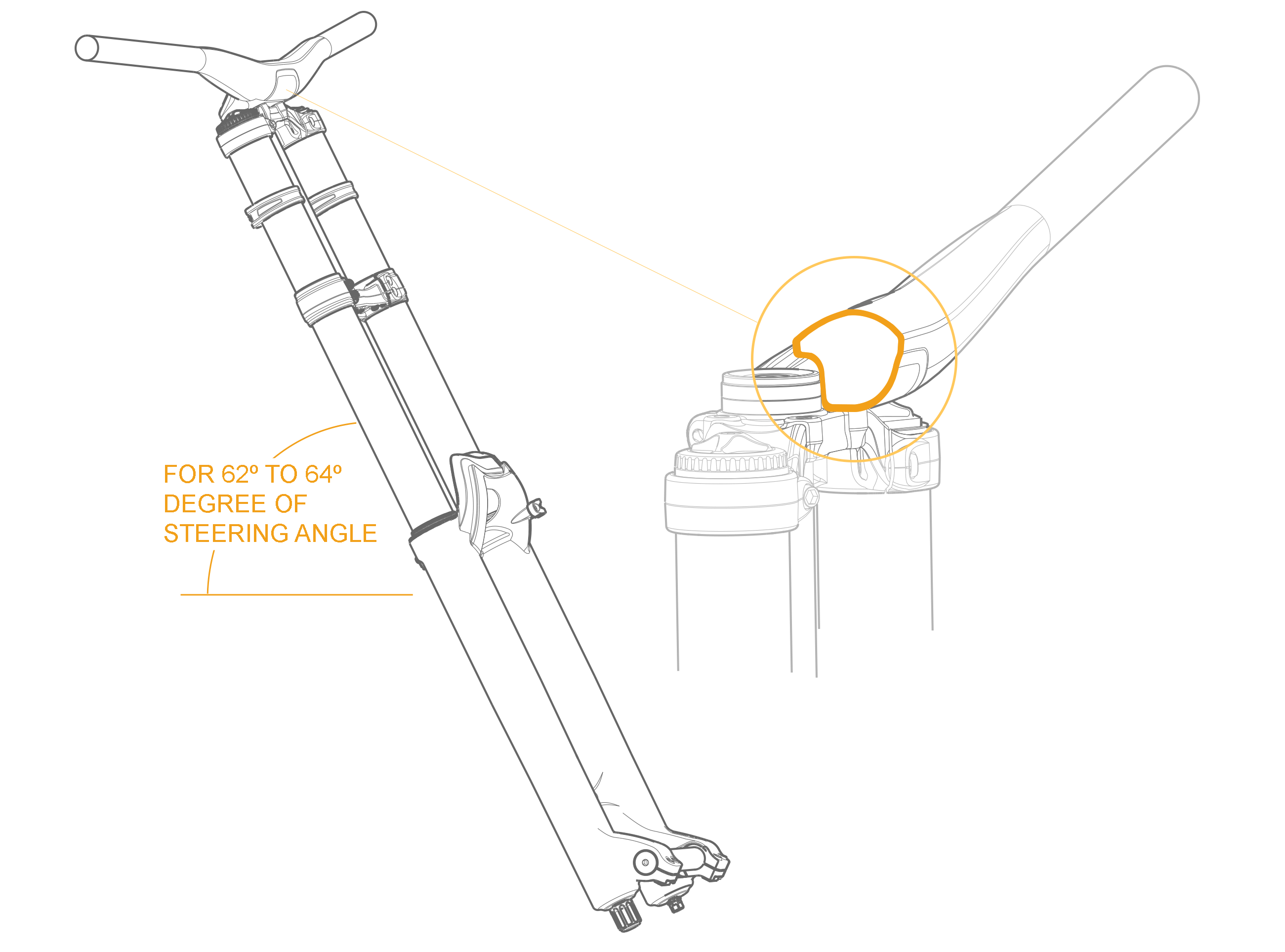

GEOMETRY FOR DESCENT

Pollux is specifically designed to be mounted on bikes with steering angles between 62º and 64º. The entire geometry is designed to work in that position and give you greater control and absorption.

LOW POSITION

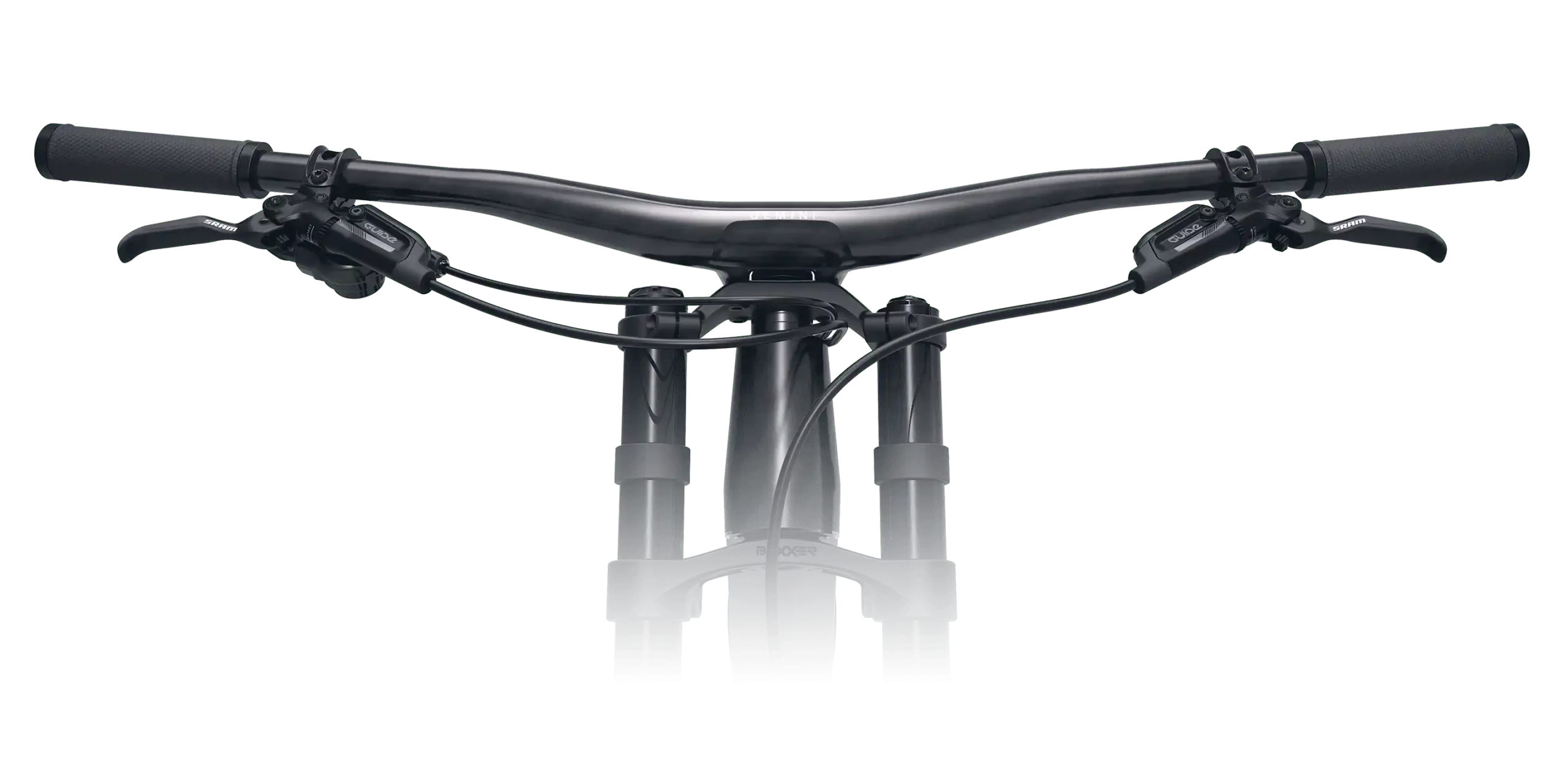

The unibody design allows the cockpit to be mounted directly on the triple clamp, achieving a very low position. To achieve this, we have provided a housing for the steering cap, so you can adjust the geometry of your bike by raising or lowering the triple clamp without having to cut the head tube as you would have to do with a conventional handlebar.

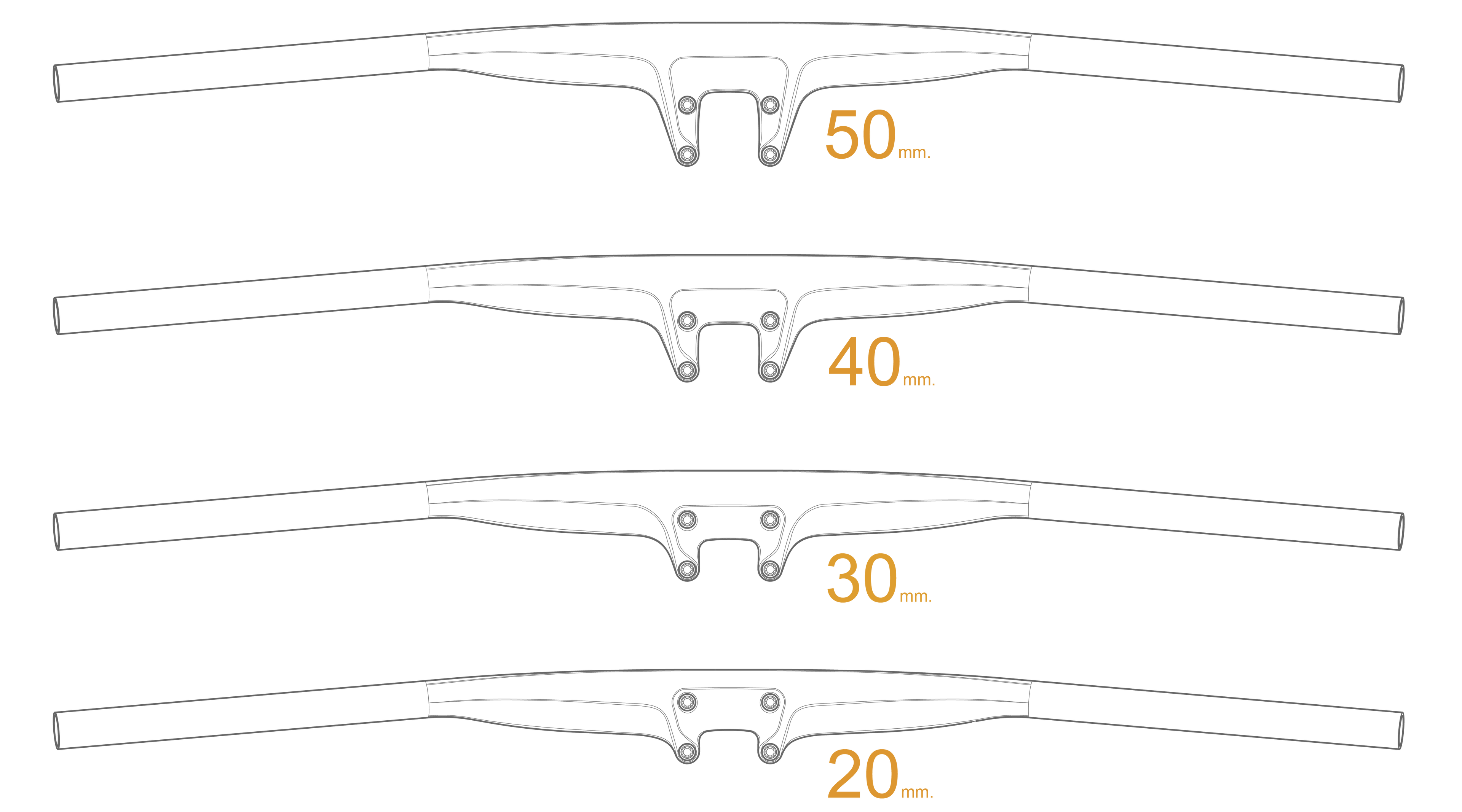

CHOOSE YOUR PERFECT LENGTH

POLLUX is available in different stem lengths so you can choose the position that best suits your style and the geometry of your bike, with lengths of 20, 30, 40 and 50 mm.

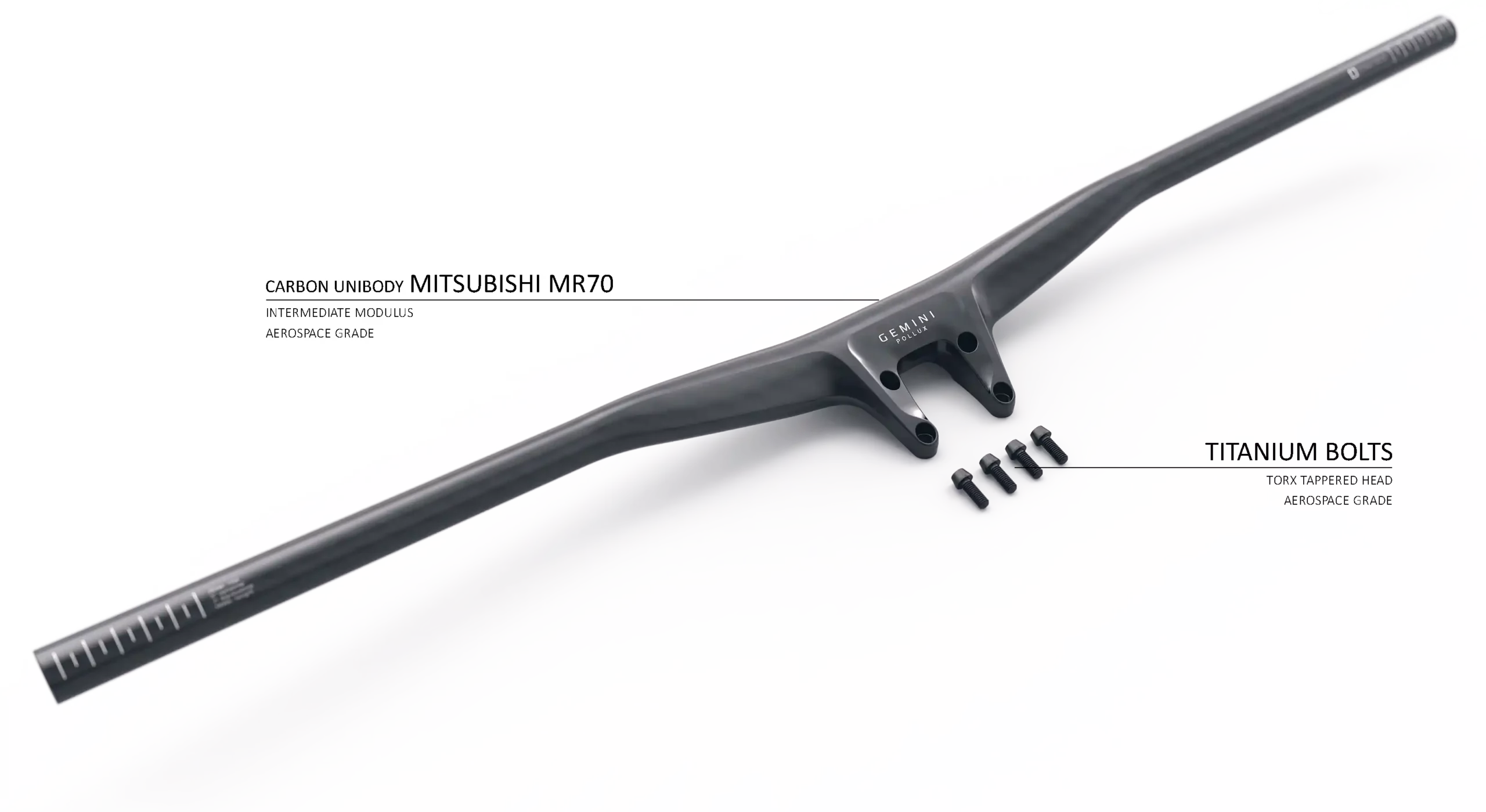

POLLUX IS MADE WITH THE FINEST CARBON FIBER

It could only be made with the best intermediate modulus carbon fiber currently available on the market, MITSUBISHI MR70, combined with an optimized layout for greater impact resistance and a manufacturing process specifically developed to produce top-quality parts.

CARBON FIBER

Not all carbon fibers are created equal, which is why we've chosen the strongest carbon fiber with an intermediate modulus. Mitsubishi MR70 is a cutting-edge, high-end carbon fiber developed for the highest demands of the aerospace industry. This is the best way to ensure the handlebar's best performance and increase strength while reducing weight.

SPECIFIC BLADDER DESIGN

What you don't see is as important as what you do, which is why we've created a custom-made bladder for each handlebar size. This allows us to perfectly adapt to its shape and achieve perfect fiber compaction, preventing the formation of wrinkles and resin pools.

CONSTRUCTION

The properties of the material are very important, but so is the construction structure of the pieces, which is why we use a "sandwich" structure, using woven fiber in the outer and inner layers to increase resistance to delamination due to impacts, and a whole core of UD fiber that guarantees us to obtain the best mechanical and structural properties of the fiber.

TITANIUM

The best material for contact with carbon fiber is titanium. Thanks to its chemical properties, it behaves like a noble material, preventing any type of galvanic corrosion. That's why we chose it, along with its balanced mechanical properties and weight, for all the hardware.

SUBJECTED TO THE MOST DEMANDING TESTS IN THE LABORATORY AND ON THE WHISTLER DESCENTS

Pollux is a piece of engineering of the highest quality and durability. It has been lab-tested to withstand the most abusive loads the industry applies to downhill handlebars, with forces far exceeding those required by the ISO standard. That's why we went to Whistler to validate it in the field.
