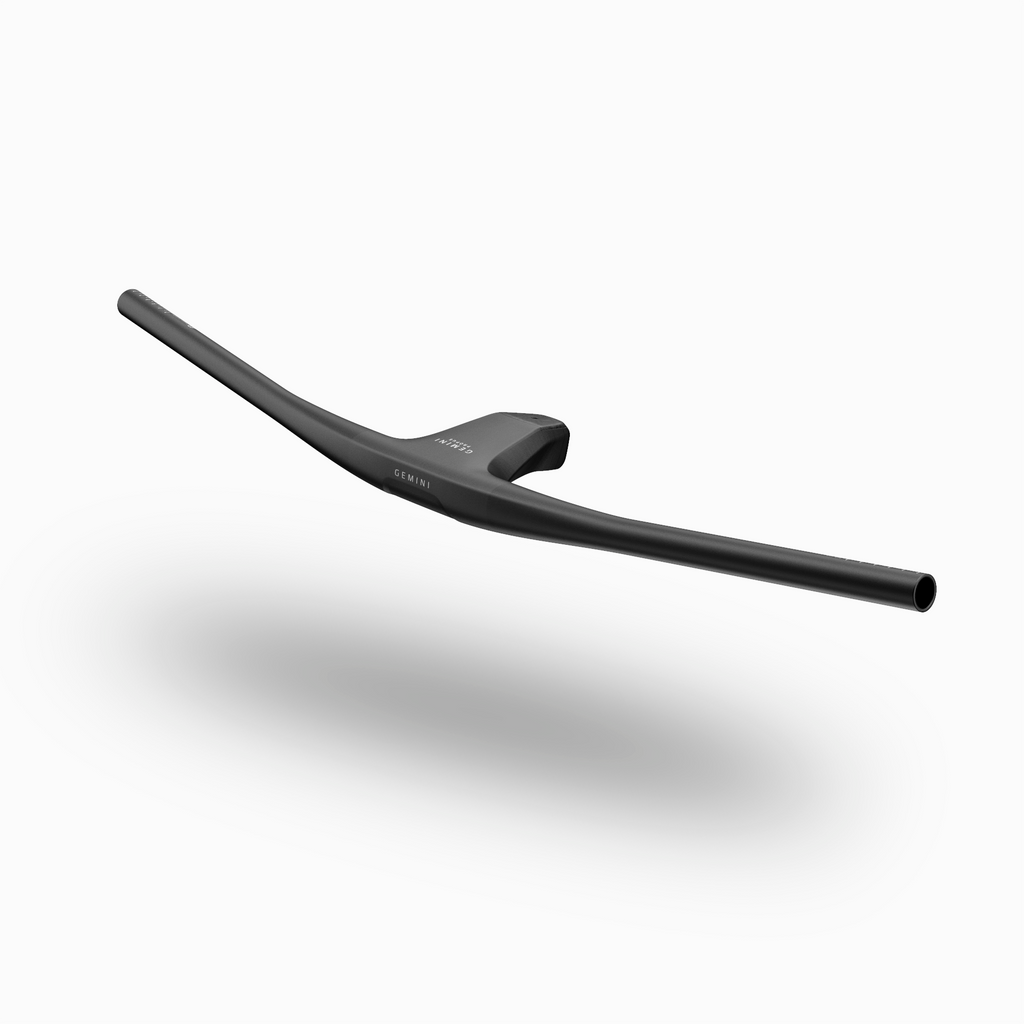

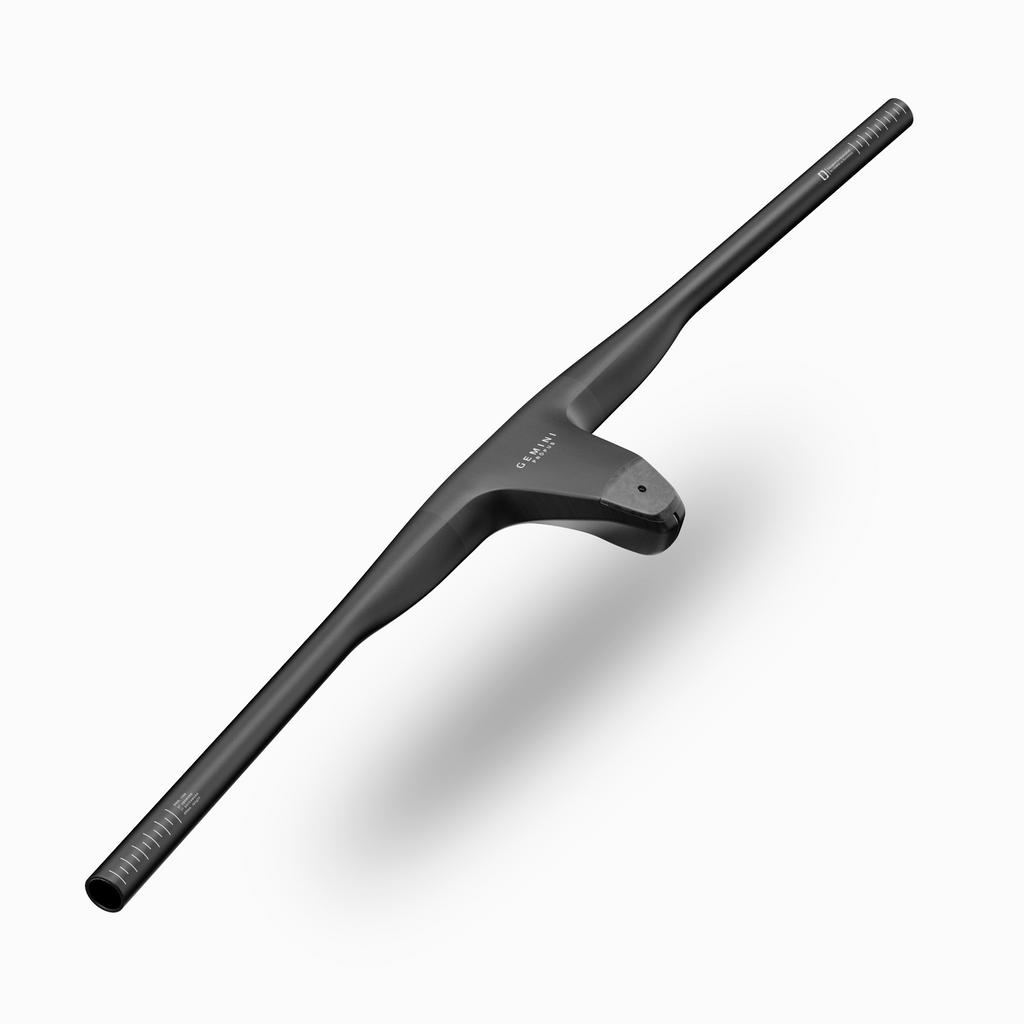

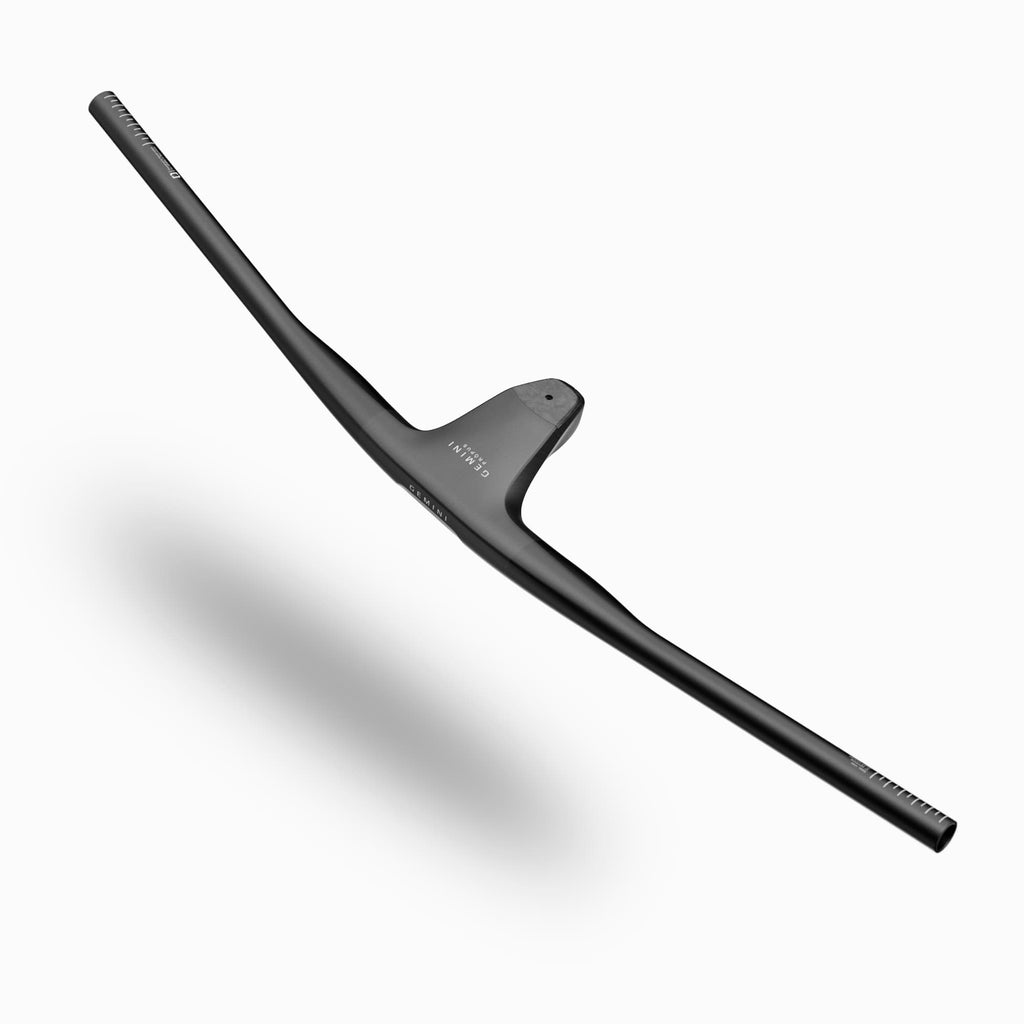

Manillar ultraligero Gemini PRÖPUS de carbono para MTB y XC, vista principal

PROPUS - Ultralight Carbon Integrated MTB Handlebar for XC 740mm

€650,00 EUR

Select the measurements of your Gemini Pröpus handlebar:

Power length 50 60 70 80 90 100

Offset in mm. +3 -12 -25

Download our geometry guide to see the power angle equivalencies available with our offsets.

* We only produce a limited quantity each week.
If you order today, it will be ready in 4 weeks.

FREE EU Shipping

15 days for exchanges and returns

3-year warranty

TOP Customer Service, Contact Us!

Por defecto, nuestros manillares vienen con acabado UD mate, que ofrece una estética sobria y minimalista con superficie negra lisa. Para quienes buscan una apariencia más personalizada o llamativa, ofrecemos acabados opcionales con coste adicional:

UD brillo
Acabado negro brillante sobre fibra UD.
Ideal para quienes prefieren una estética más pulida y elegante.
Mantiene la superficie lisa, sin patrón visible.

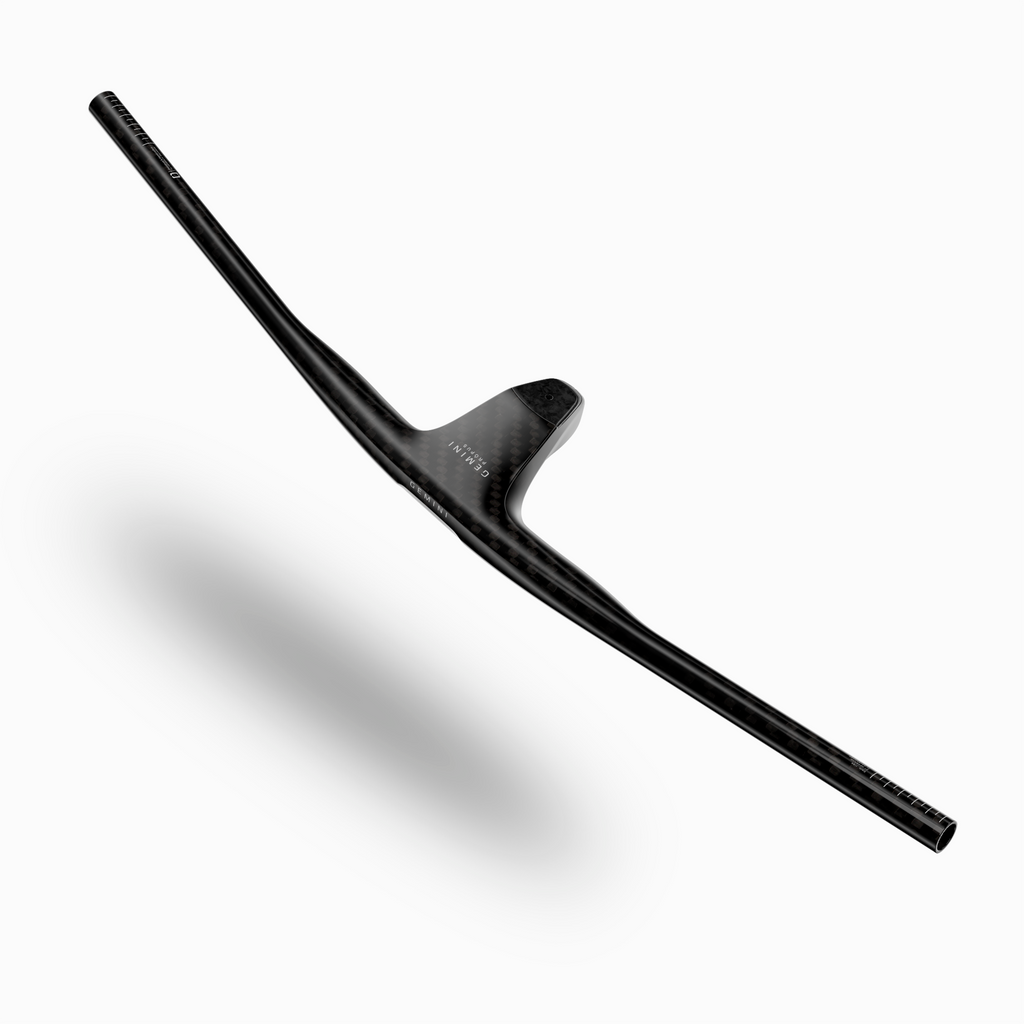

12K brillo
Acabado brillante sobre tejido de carbono 12K.
El patrón entrelazado de la fibra queda visible, aportando un look técnico y distintivo.
Recomendado para quienes quieren destacar el carácter carbono de la pieza.

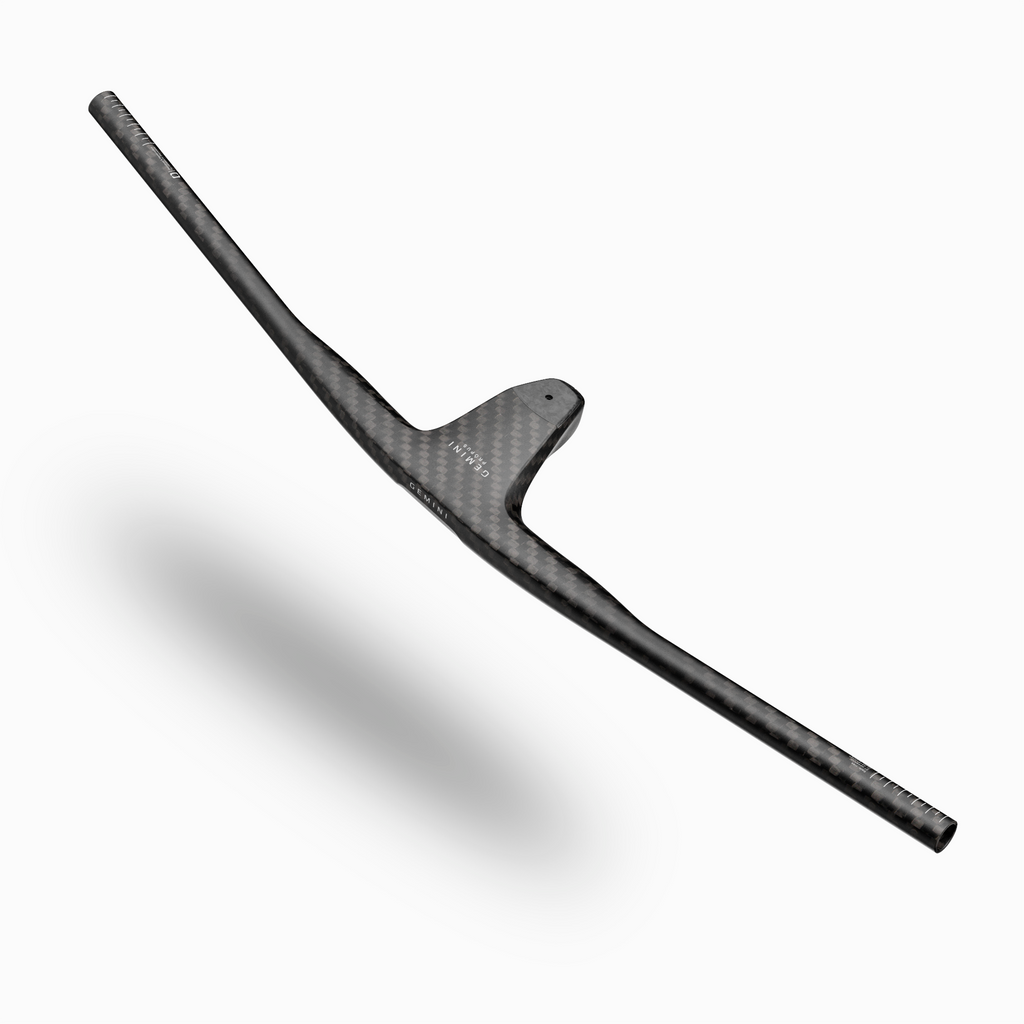

12K mate
Acabado mate sobre fibra 12K.
Combina el patrón visible con una estética más discreta y profesional.
Perfecto para quienes buscan un equilibrio entre sofisticación y rendimiento.

Por defecto, todos nuestros manillares vienen con el laminado Lightweight, diseñado para ofrecer el menor peso posible sin comprometer la reactividad ni el confort. Para quienes buscan una conducción más agresiva y explosiva, está disponible la opción Performance, con mayor rigidez y resistencia.

- Lightweight (incluido por defecto)

Laminado ultraligero desde 156 gr.
Máxima absorción de vibraciones en la dirección de los brazos, lo que mejora el confort y reduce la fatiga en rutas largas.
Alta reactividad al giro gracias al diseño de la sección GMN, más sensible que los manillares redondos convencionales.
Optimizado para ciclistas de hasta 90 kg.
Recomendado para quienes priorizan ligereza, eficiencia y comodidad en terrenos técnicos.
No está diseñado para soportar ciertos impactos: es una pieza de alto rendimiento enfocada en competición XC.

- Performance

Laminado más rígido desde 210 gr.
Mayor rigidez a torsión, especialmente útil en esprints y maniobras de alta intensidad.
Conducción más directa y precisa, con mayor reactividad en cada movimiento.
Aumenta la resistencia estructural ante caídas e impactos.
Apto para ciclistas de hasta 120 kg, ofreciendo mayor seguridad en condiciones exigentes.

Pröpus is the jewel in the crown for XC riders who only ride the best. Its one-piece carbon body is designed to give you maximum control with minimal weight and an aesthetic that will turn heads.

Pröpus combines engineering and design into a single piece, allowing shape and material to work together to enhance your cycling performance.
Its design is optimized so that the Carbon fiber works efficiently, offering maximum precision and control in turns, allowing you to take the bike exactly where you want. At the same time, its vertical absorption reduces upper body fatigue, while the ergonomic central design promotes an aerodynamic position that allows you to go faster and more efficiently.

Each handlebar is handcrafted in our Barcelona workshop , using our own technology and the finest carbon fiber. The result is a unique, exclusive, and limited-production piece.

Available Carbon Laminate Configurations :
- Lightweight (default) : from 149 g, maximum lightness and comfort for long routes.
- Performance : +35 g, greater rigidity and durability in case of falls, for aggressive riding.

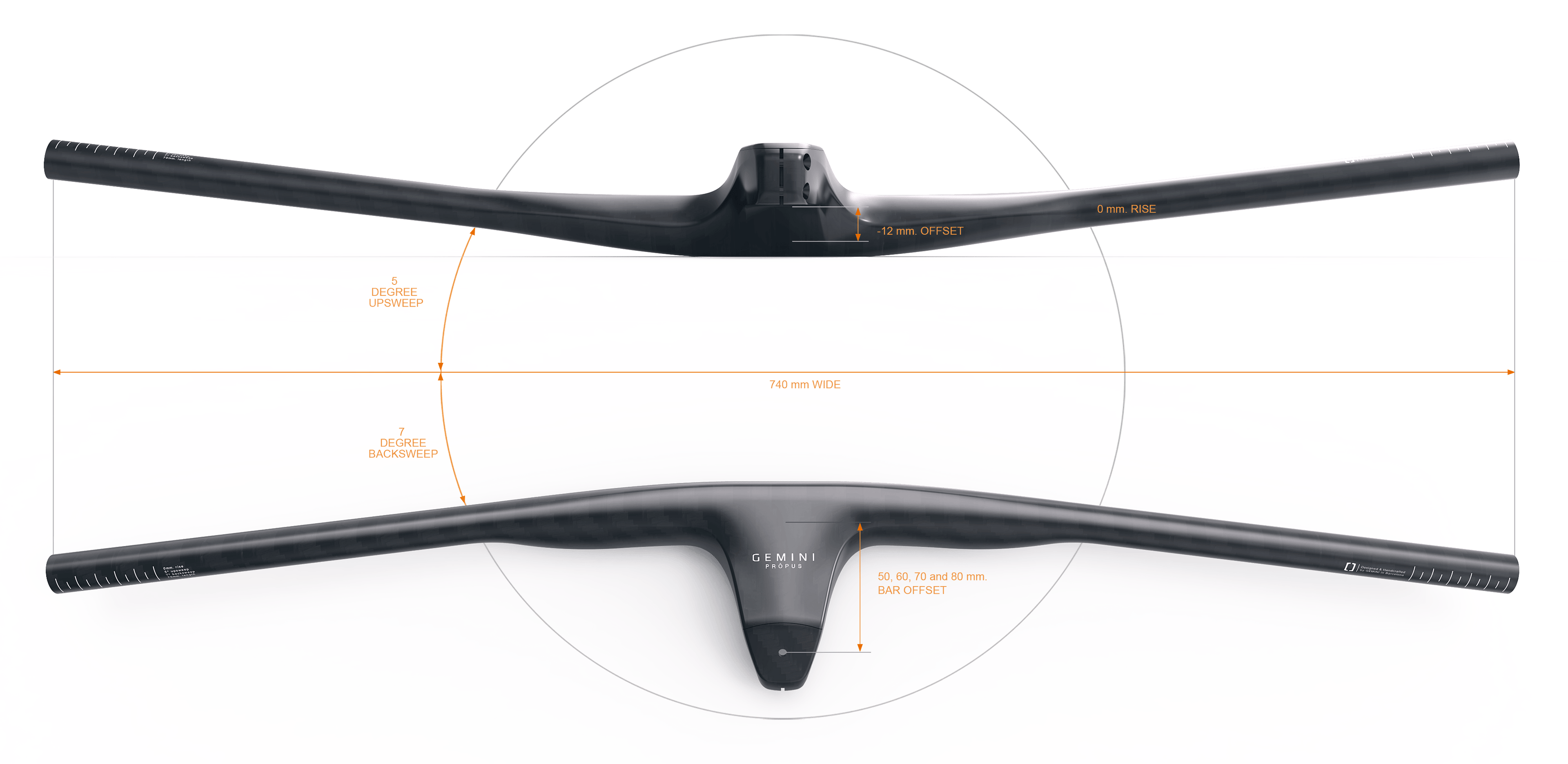

XC optimized geometry :
- Width: 740 mm (other measurements upon request)
- Upsweep: 5°, Backsweep: 7°
Finish:
- Standard: UD Mate.
- Customized, on request: fiber finish, UD or 12K. Gloss or Matte coating.
- Custom Lab: Take your handlebar paint to the next level and make it unique.
Includes:
- Integrated forged carbon lid
- Titanium screws for the cover and the handlebar.

While the products we create are worthy of a display case, they're meant to be enjoyed by you as you ride and push your limits, and falls are part of the game.
In this situation, if you damage a Gemini component, don't worry and send us an email to info@ridegemini.com with:

details and photos of your damaged product
your original receipt
any other details that may be useful

and we'll offer you a discount on a replacement component

Country:

Related products

PROPUS

a work of engineering for XC.

DESIGNED AND MANUFACTURED IN BARCELONA TO GET THE MOST OUT OF XC RACES

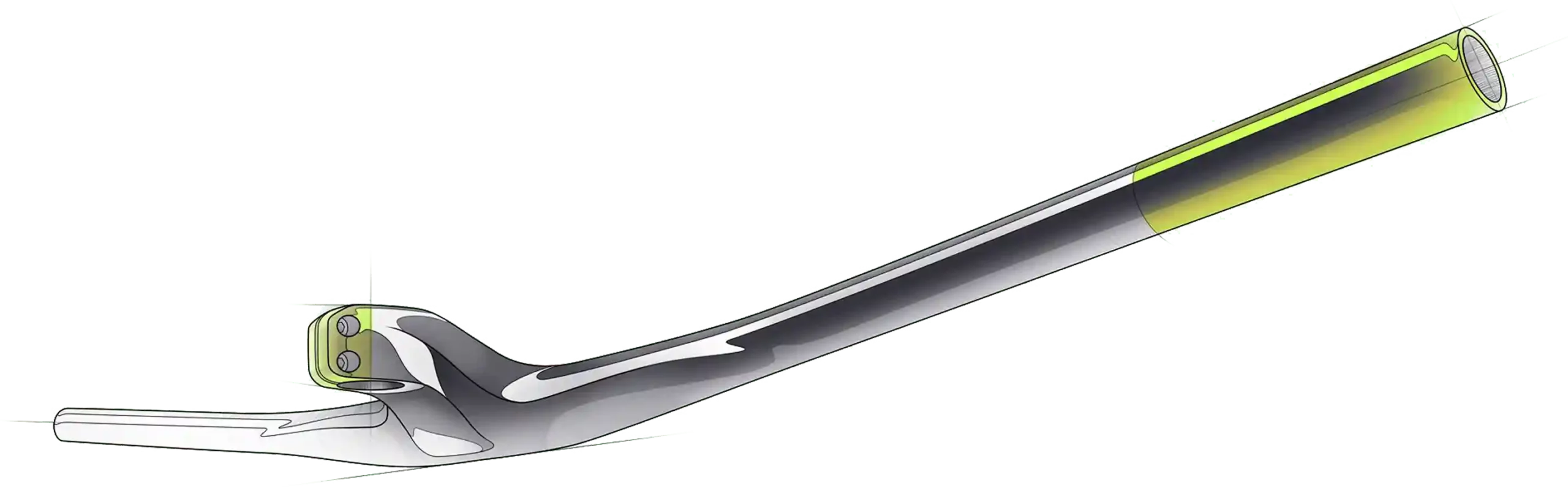

PRÖPUS is not just another XC handlebar, it is the reflection of hours of engineering to create an ultra-light and ultra-resistant handlebar, its unibody design and the materials with which it is built will allow you to fly over the terrain.

UNIBODY DESIGN SPECIFIC TO CROSS COUNTRY

PRÖPUS is a handlebar developed to allow you to go faster on climbs, provide comfort in the roughest areas, and increase your control on technical descents with maximum integration and a simple, clean aesthetic.

**149 g.* OF PURE ENGINEERING AND RESISTANCE**

PRÖPUS is not an ultralight handlebar simply because we decided to remove material; each layer is studied and optimized to perform at its best. Together with its unibody design, it offers unmatched resistance compared to a conventional handlebar.

*5% variation margin

NO ASSEMBLY STRESS

By eliminating the connection between the stem and handlebars, the tensions generated by the preloads generated during assembly are eliminated, preventing the handlebar from slipping. The areas subject to compression, which deform the part and cause delamination of the fiber layers, reducing resistance, are also eliminated.

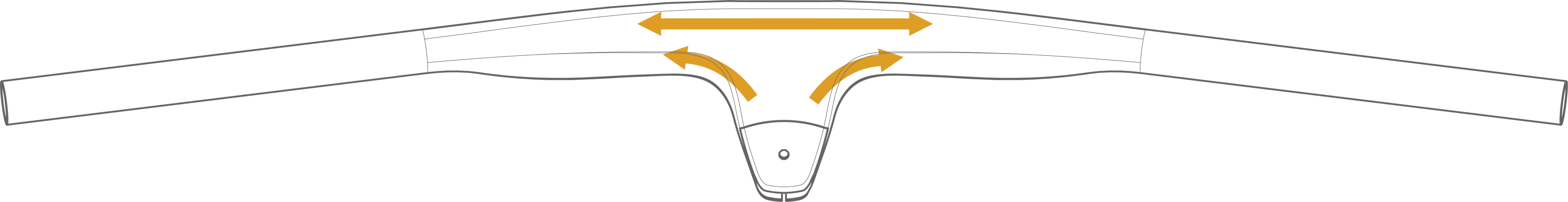

VOLTAGE DISTRIBUTION

The continuity of the material between the stem and the handlebar facilitates the distribution of stresses over a larger area, allowing them to flow along the handlebar, eliminating areas with high buildup and thus increasing overall strength.

GMN SECTION

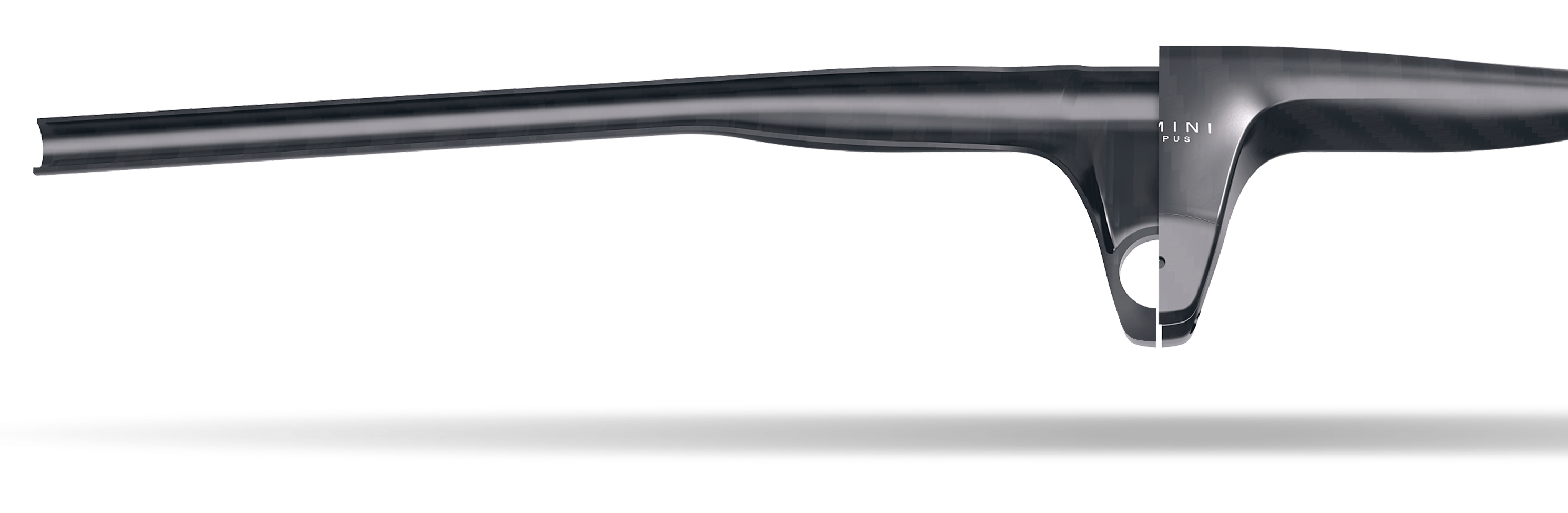

Circular sections behave the same in all directions, which is why we developed the GMN section with two basic purposes: to reduce hand fatigue due to vibrations and forces, and to increase reactivity and control when turning.

VERTICAL ABSORPTION

By reducing the vertical section we achieve greater absorption of vertical impacts and vibrations, this translates into less fatigue in the hands and being able to maintain a high rate of descent, aluminum bar

SPIN REACTIONS

By increasing the horizontal section, we manage to increase the rigidity of the handlebar against the forces exerted by the pilot to turn, this translates into more direct and reactive steering control. Carbon bar

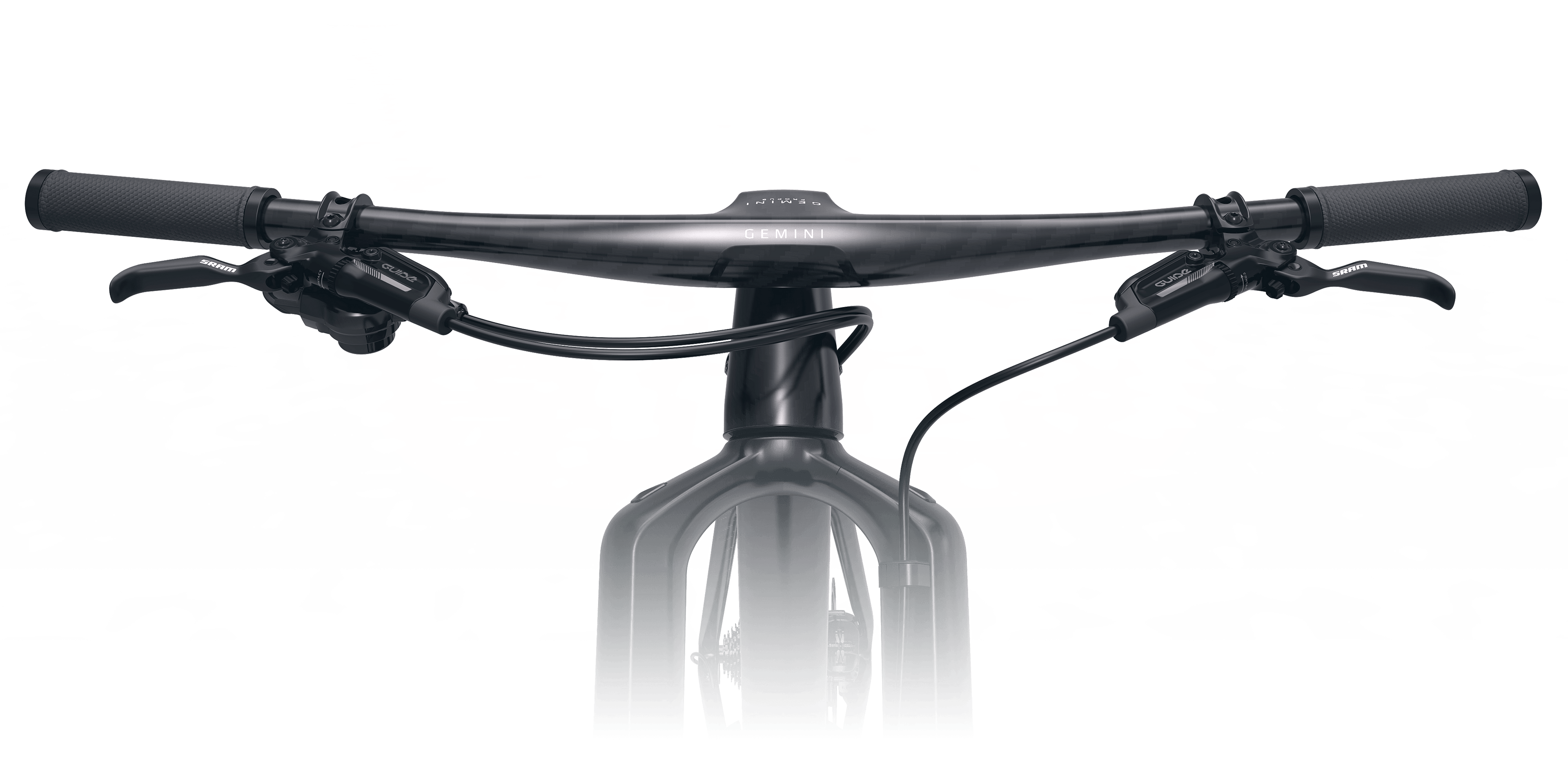

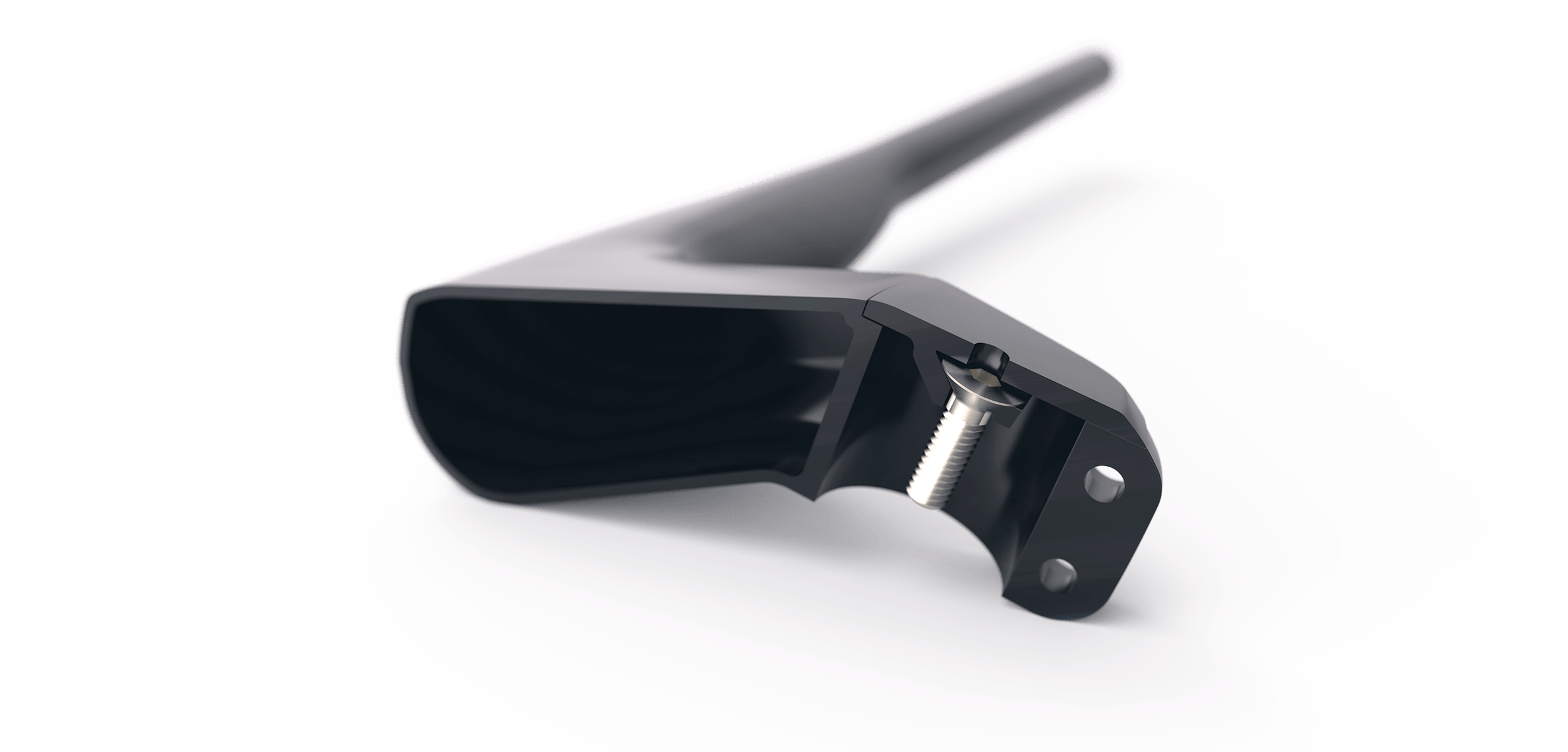

INTEGRATION DOWN TO THE LAST DETAIL

We've fully integrated the most visible part of the bike, using our unique cover, which hides the top screw, leaving a hole for inserting just a Torx wrench to tighten it, giving the cockpit a cleaner look.

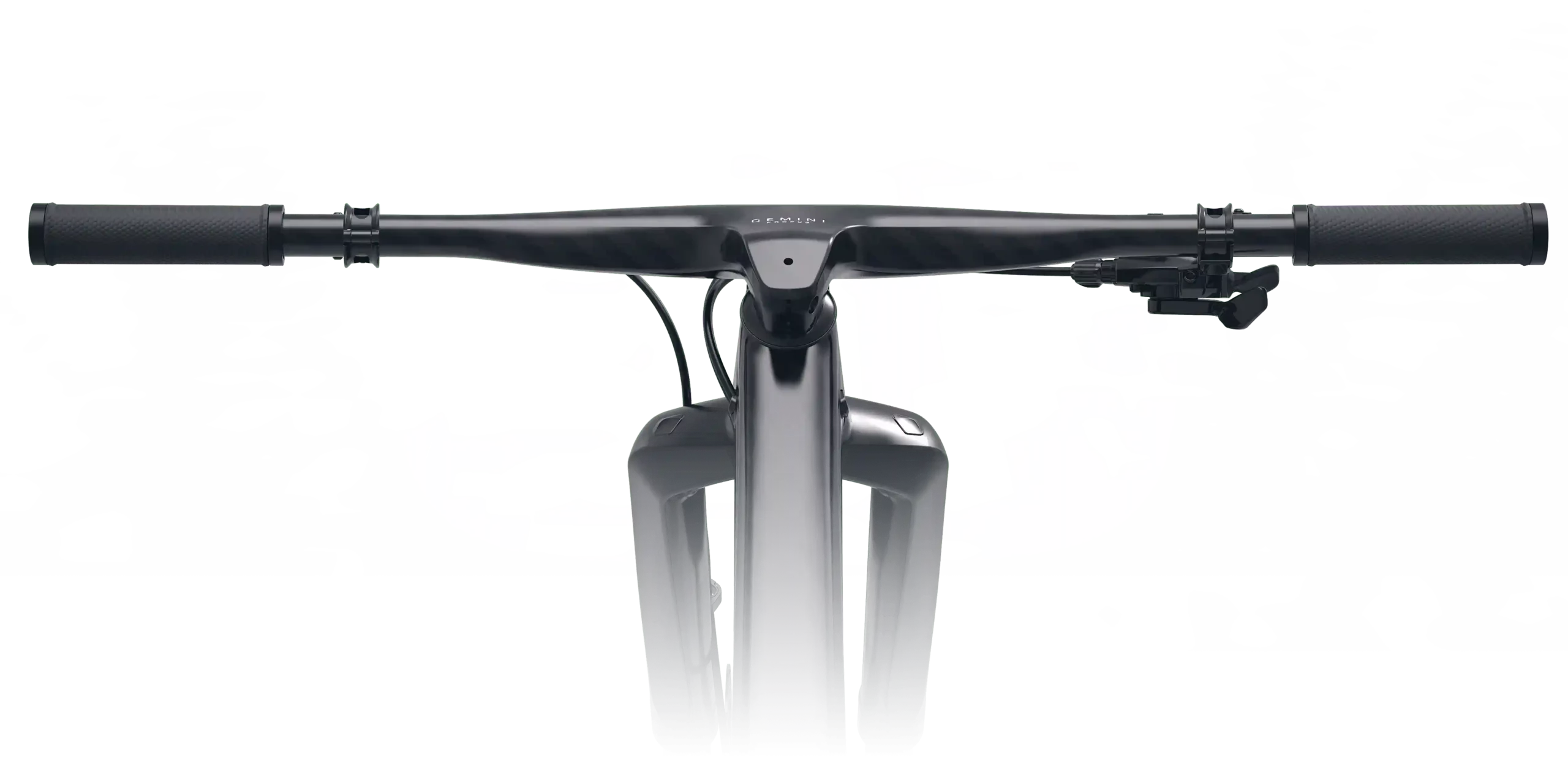

OPTIMIZED GEOMETRY FOR XC, WITH ADVANCES OF 50, 60, 70, 80, 90 AND 100 mm.

XC-specific geometry developed to lower your center of gravity and give you maximum control on both the most technical climbs and the most broken descents.

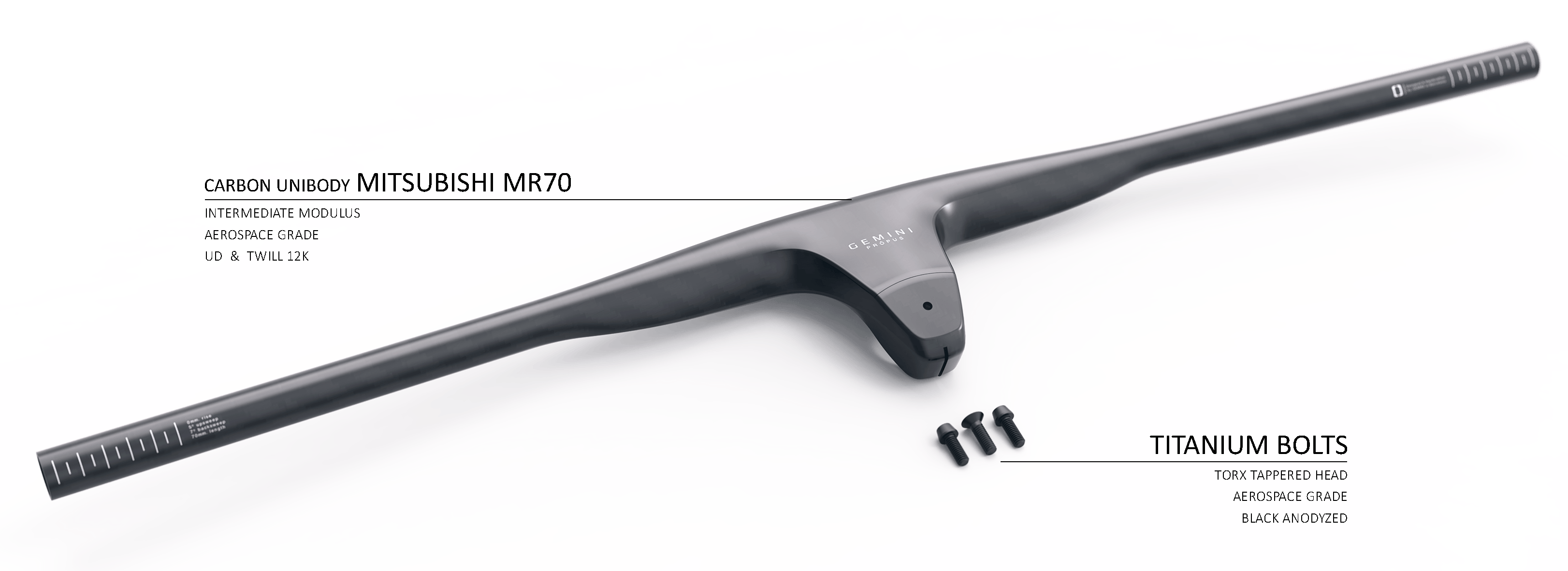

MADE WITH THE BEST INTERMEDIATE MODULUS CARBON FIBER

PROPUS is made with the best fiber currently available, Mitsubishi MR70, its layout has been optimized to help you endure hours on the bike, providing you with greater comfort and safety.

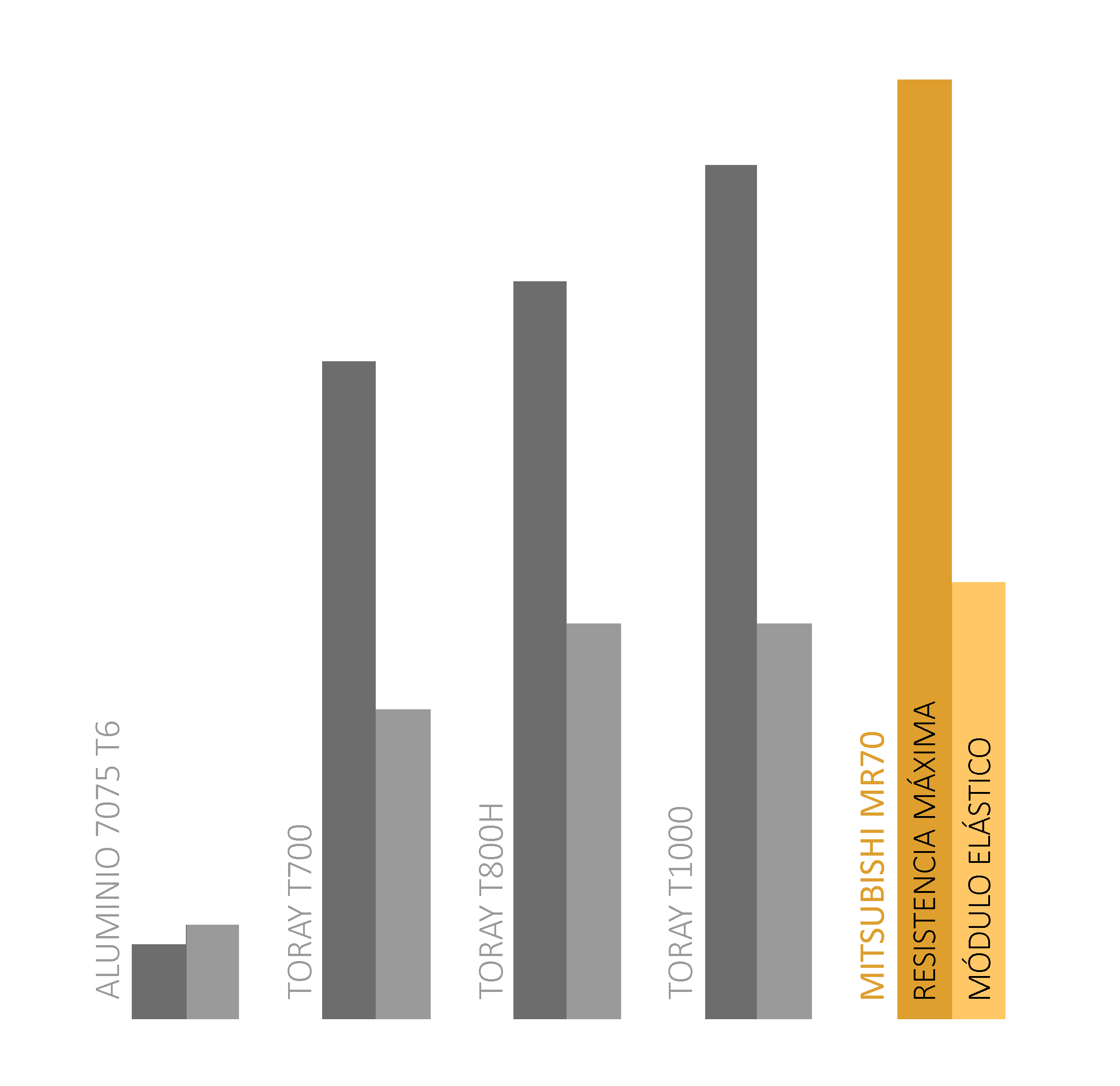

CARBON FIBER

Not all carbon fibers are created equal, which is why we've chosen the strongest carbon fiber with an intermediate modulus. Mitsubishi MR70 is a cutting-edge, high-end carbon fiber developed for the highest demands of the aerospace industry. This is the best way to ensure the handlebar's best performance and increase strength while reducing weight.

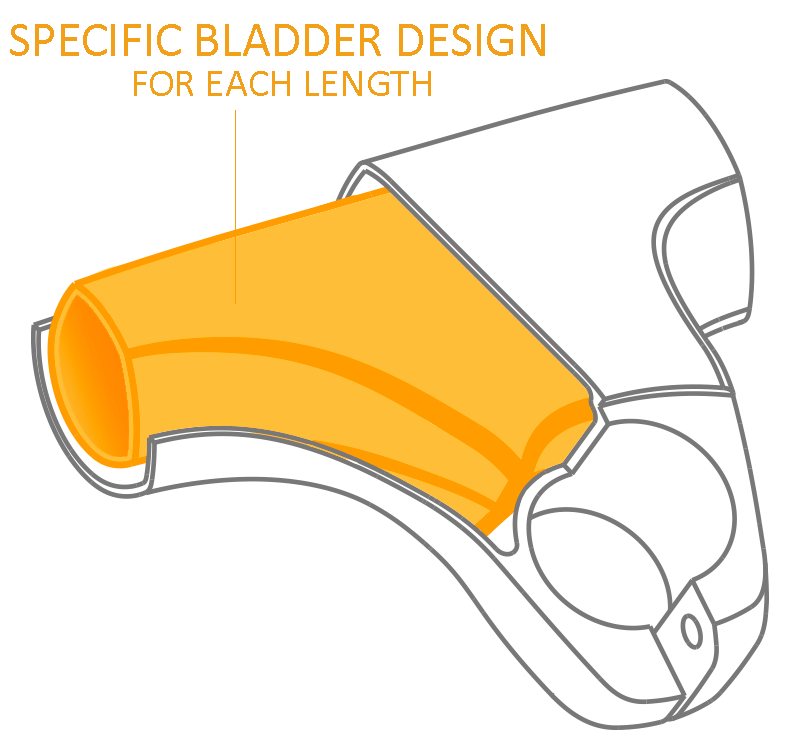

SPECIFIC BLADDER DESIGN

What you don't see is as important as what you do, which is why we've created a custom-made bladder for each handlebar size. This allows us to perfectly adapt to its shape and achieve perfect fiber compaction, preventing the formation of wrinkles and resin pools.

CONSTRUCTION

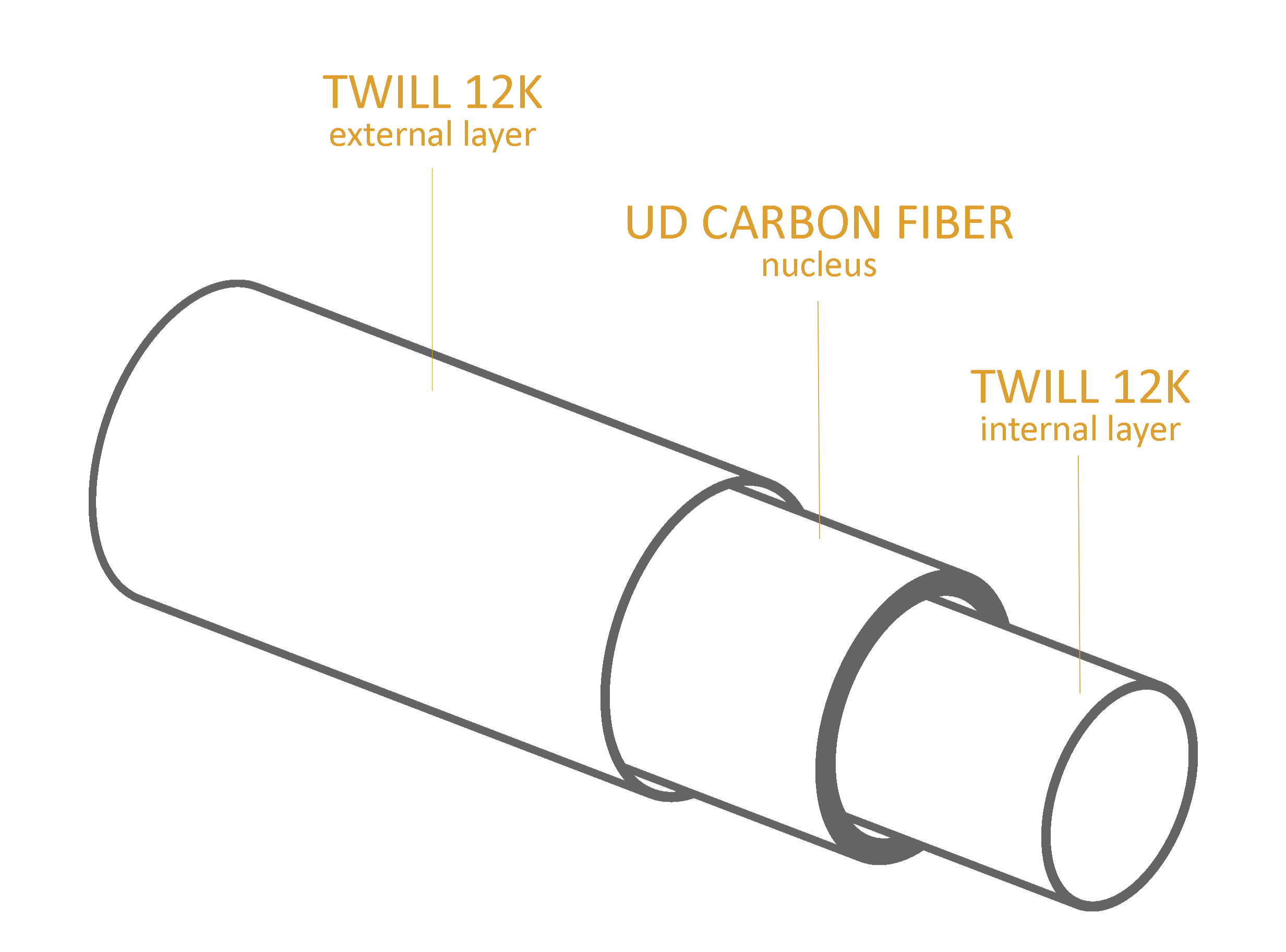

The properties of the material are very important, but so is the construction structure of the pieces, which is why we use a "sandwich" structure, using woven fiber in the outer and inner layers to increase resistance to delamination due to impacts, and a whole core of UD fiber that guarantees us to obtain the best mechanical and structural properties of the fiber.

TITANIUM

The best material for contact with carbon fiber is titanium. Thanks to its chemical properties, it behaves like a noble material, preventing any type of galvanic corrosion. That's why we chose it, along with its balanced mechanical properties and weight, for all the hardware.

SUBJECTED TO THE MOST DEMANDING TESTS

PROPUS has been tested in the field and in the laboratory, passing very demanding endurance tests. Thanks to its unibody design and the material used, it offers unparalleled resistance, making it a piece optimized for competition.
